800bbl Self Contained Production Tank Cascade System

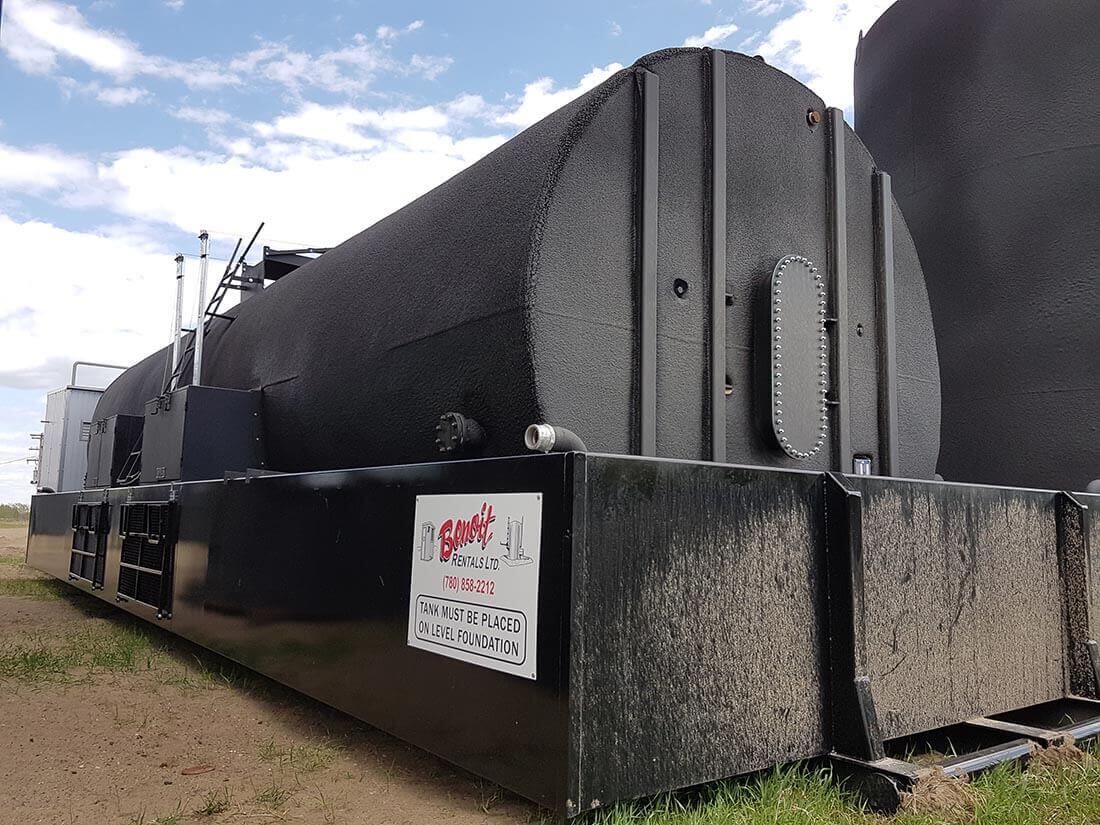

SWS 800 #4.jpg

800bbl Self Contained Production Tank Cascade System

Our Standard 800bbl (128m3) Horizontal Production Tanks are built to API 12F and are designed to be a “plug and play” production unit. The full system is setup with (2) horizontal 400bbl insulated tanks which are fully self-contained and AER Compliant within the integrated skid/containment.  Units are fully skidded and are very easily setup onsite within hours of arrival.

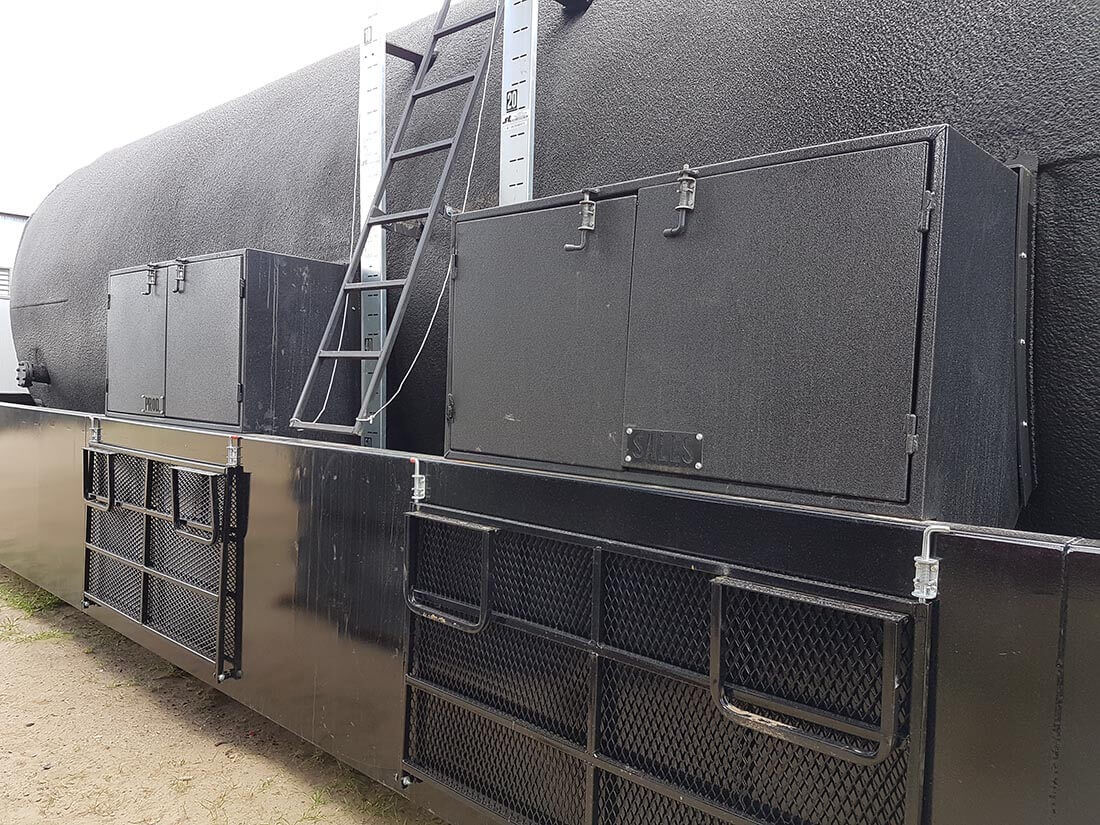

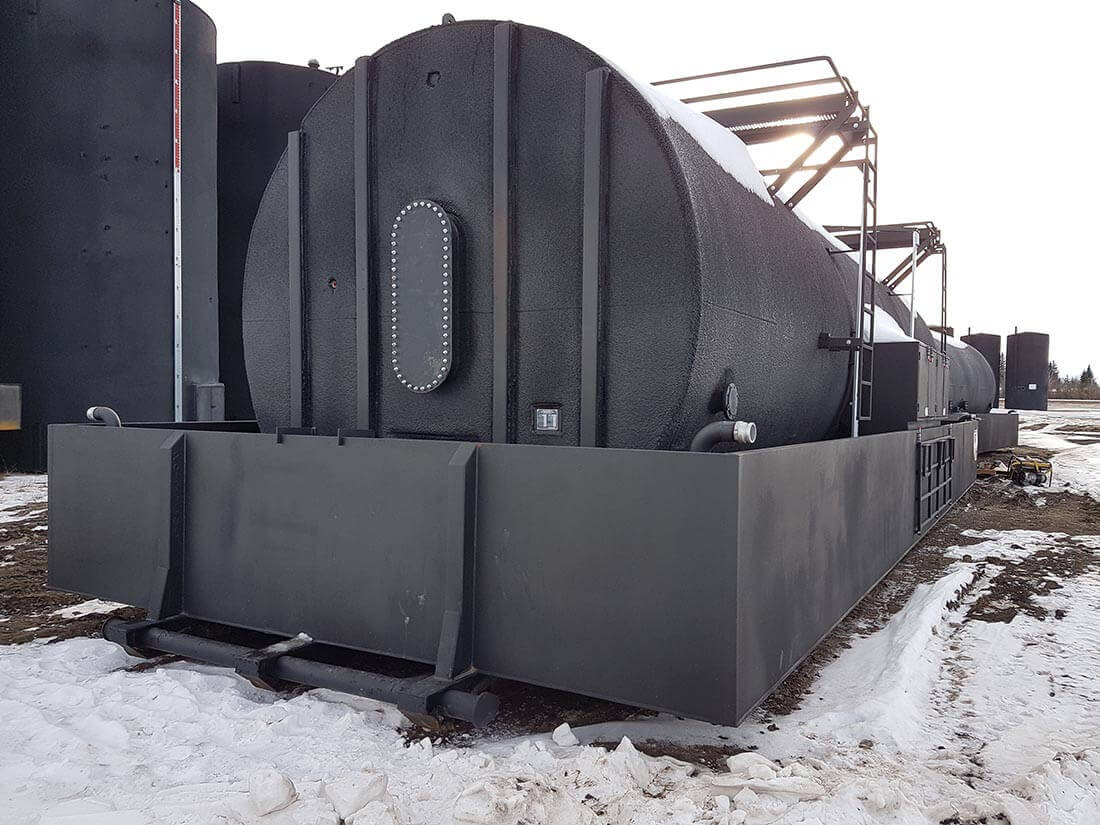

Truckout Valving etc is very easily accessed through the built in enclosure and platforms.

All of our stock 800bbl horizontal tanks are standardly equipped with the following:

  • Built to API12F
  • 800bbl (128m3) Capacity  (2) 12’ x 20’ Horizontal 400bbl Tanks
  • Design Pressure 16oz. / 0.4oz Vacuum
  • ¼” Floor and Roof  / 3/16” Shell
  • Skid/Tank Dimensions:16’ Wide x 50’ Long Triple Member Skid c/w loading ears
  • Complete Unit on skid is 13.5ft Tall

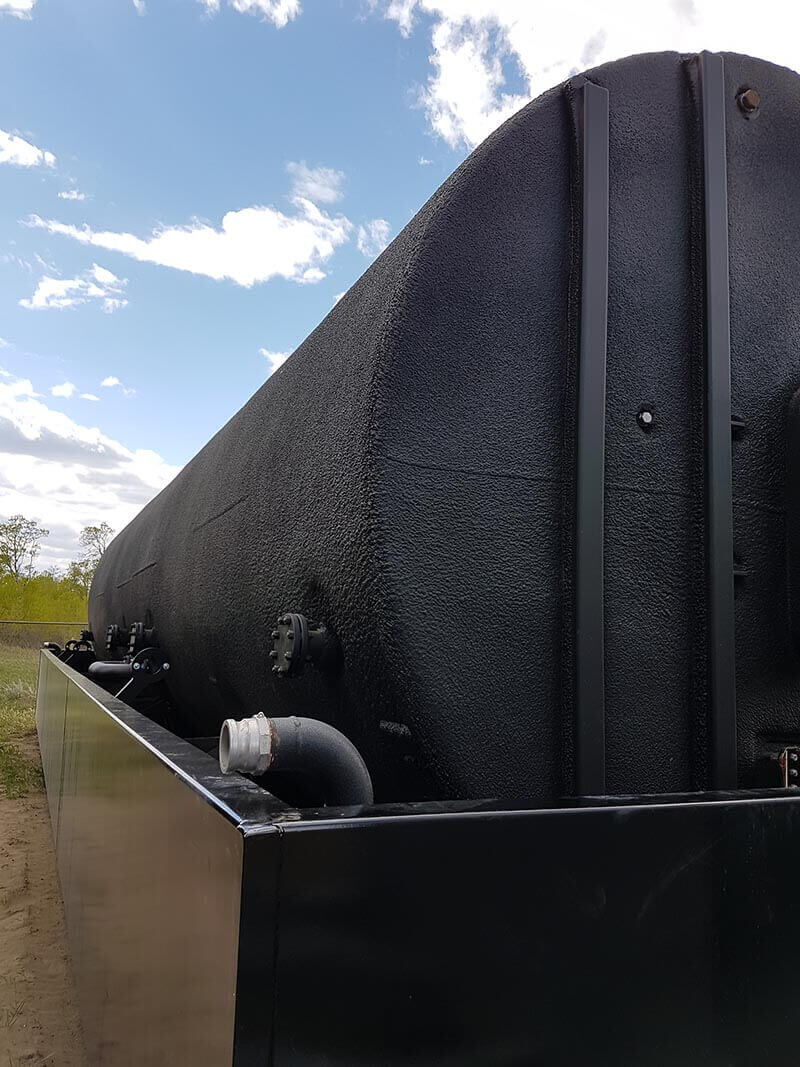

  • Built in Secondary Containment Wall (Fully G55 Compliant)
  • (2) 8” Hawkeye Sour or Sweet Service Thief Hatches set at 16 oz. psi & 0.4 oz. Vacuum
  • (2) Sour or Sweet Service Gauge-board Systems c/w gauge board in M3 increments
  • Secondary Containment Truckout nozzles for emptying rainwater/snow
  • Full Unit is complete with 1.5” Sprayed Urethane with 20mil Black Elastomer Sealer
  • (1) Roof Access Ladder and Collapsible Platform
  • 400bbl Production Tank Specs and Nozzle Information
    • (1) Firetube Throat  (Option to add 6” Heat Safe Firetube and Burner System)
    • Fully Enclosed Truckout Valve Cabinet c/w access platforms
    • (4) 4” 150# RFSO Nozzles  (INLET,WATER OUT, OUTLET,SPARE INLET)
    • (1) 6” 150# RFSO Nozzle c/w Riser to 9’ 10” level  (Crossover Line)
    • (1) 6” 150# RFSO Nozzle (Spare/Multi Tank Connection)
    • (4) 1” Sample Connections
    • (1) 2’ x 3’ Manway Doors c/w 4” 150# Stinger Door Nozzle c/w Valve.
  • 400bbl Production Tank Specs and Nozzle Information
    • (1) Firetube Throat  (Option to add 6” Heat Safe Firetube and Burner System)
    • Fully Enclosed Truckout Valve Cabinet c/w access platforms
    • (4) 4” 150# RFSO Nozzles  (INLET,WATER OUT, OUTLET,SPARE INLET)
    • (1) 6” 150# RFSO Nozzle (Crossover Connection Line from PROD Tank.)
    • (1) 6” 150# RFSO Nozzle (Spare/Multi Tank Connection)
    • (4) 1” Sample Connections
    • (1) 2’ x 3’ Manway Doors c/w 4” 150# Stinger Door Nozzle c/w Valve.

Options:

  • 6” or 8” Horizontal Burner Tubes
  • B149.3 Compliant Burner Management Systems
  • VRU lines
  • Internal Coating
  • Extra nozzles

New and used purchase pricing and rental options are available.

Request A Quote
