3" or 4" - 40' Flarestacks

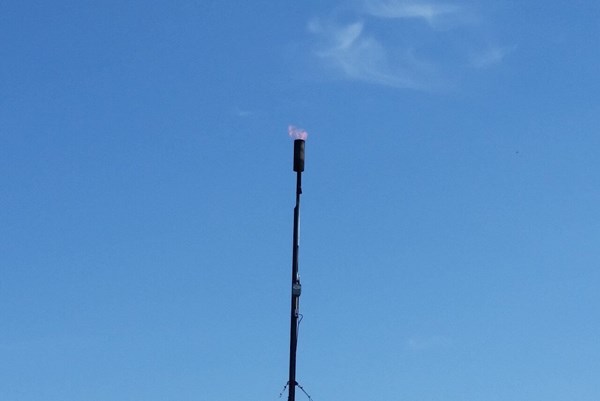

Our standard 3" or 4" guy-wire flarestack systems are packaged and offered to our clients with all the necessary accessories for a quick, efficient installation. Our units are delivered to the job site and are then elevated to where the flare is mounted. It is then secured on top of a riser and supported through a system of 3 cables (guy-wires) arranged at 120° angles.

The 3" x 40' flarestack has a flowrate of 2.5 mmscf/day

The 4" x 40' flarestack has a flowrate of 3.0 mmscf/day

All our standard flarestack packages are set up with the following:

  • Fully retractable ignitor with 2-in-1 dual continuous propane or electric ignitor system to ensure a constant flame
  • Solar power system with solar panels, 12V battery, battery enclosure and stand
  • Guy-wire cables and stakes
  • 150# inline flame arrestor with 304ss cell (studs/nuts and gasket)

Options:

  • Purge reducer
  • Wind shroud
  • Matching base plate
  • Air blower

New and used purchase pricing and rental options are available.
